Case study · Booking simulation
03 — 04
AulaBeach
Choosing a spot is a spatial question, not a list question.
A Laravel application for finding a beach club and simulating a booking. Search, availability by date and time slot, a plan of the actual beach, confirmation and cancellation — with the sun moving across it.
01 · Context
A spot is not a stock item.

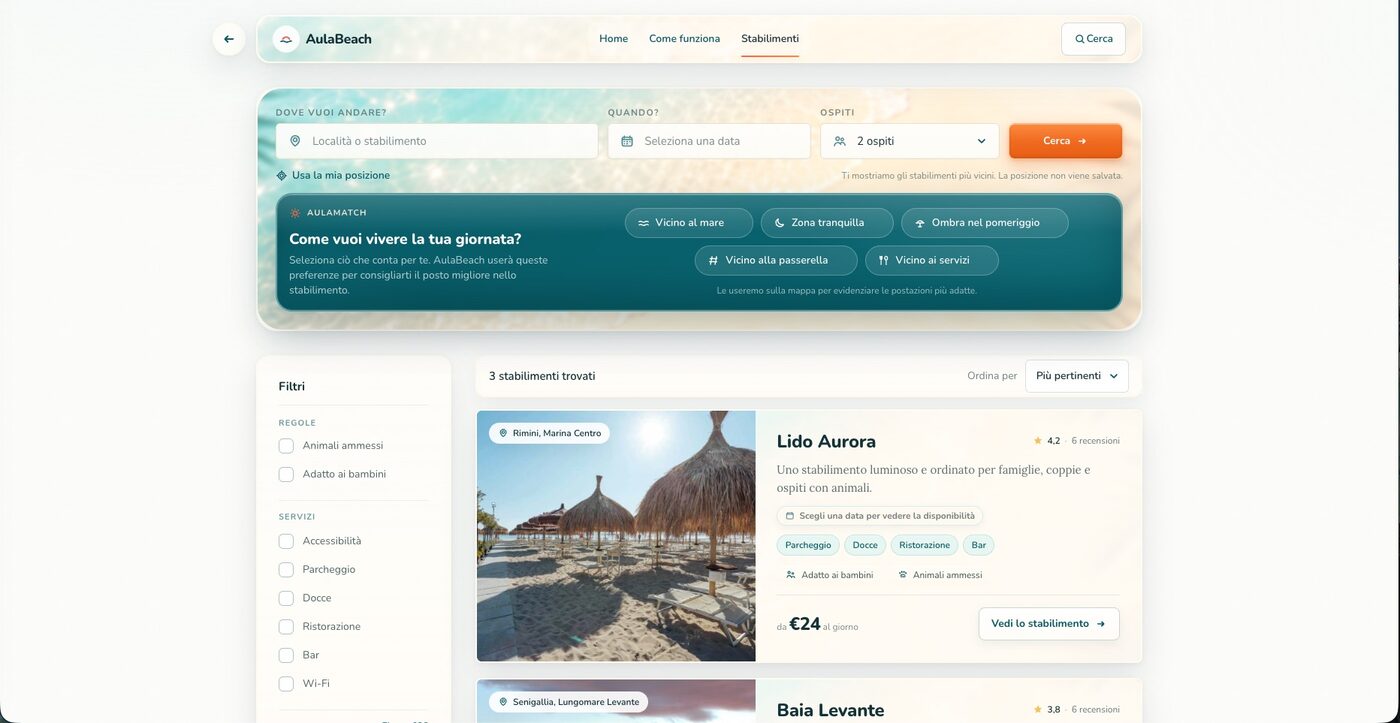

A beach club does not sell thirty-six identical units. Availability depends on the date, the time slot, and where the place physically is. The search has to carry all three before a map is worth showing.
The capture is the running application, unmodified.
02 · Direction
How do you want to spend the day?
AulaMatch does not ask for a rating. It asks what you want from the day, then scores every place against it. Here, those five preferences directly shape the plan below.
1 preference now driving the plan below ↓
03 · Feature focus

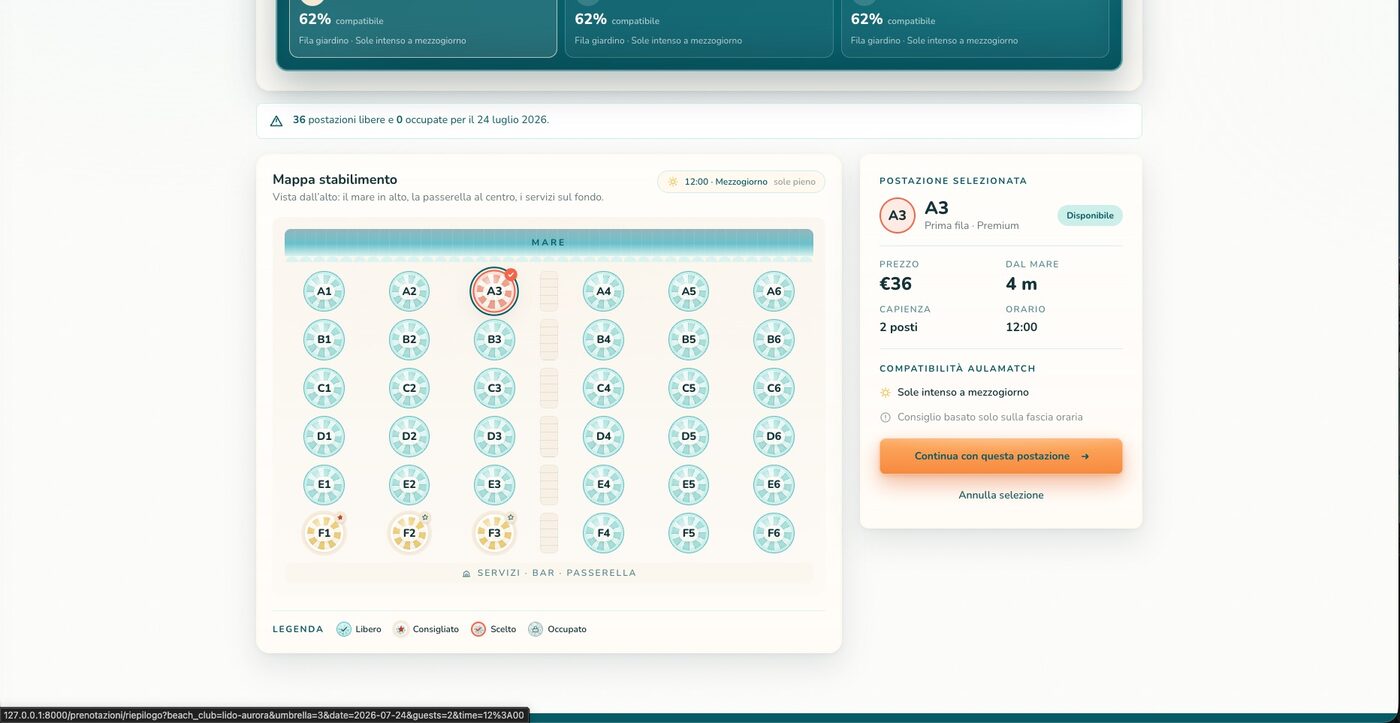

The plan
Seen from above: the sea at the top, the boardwalk in the middle, the services at the bottom.
Interactive modelTime slot
Midday · full sun
A4 m
B12 m
C20 m
D28 m
E36 m
F44 m
04 · Experience

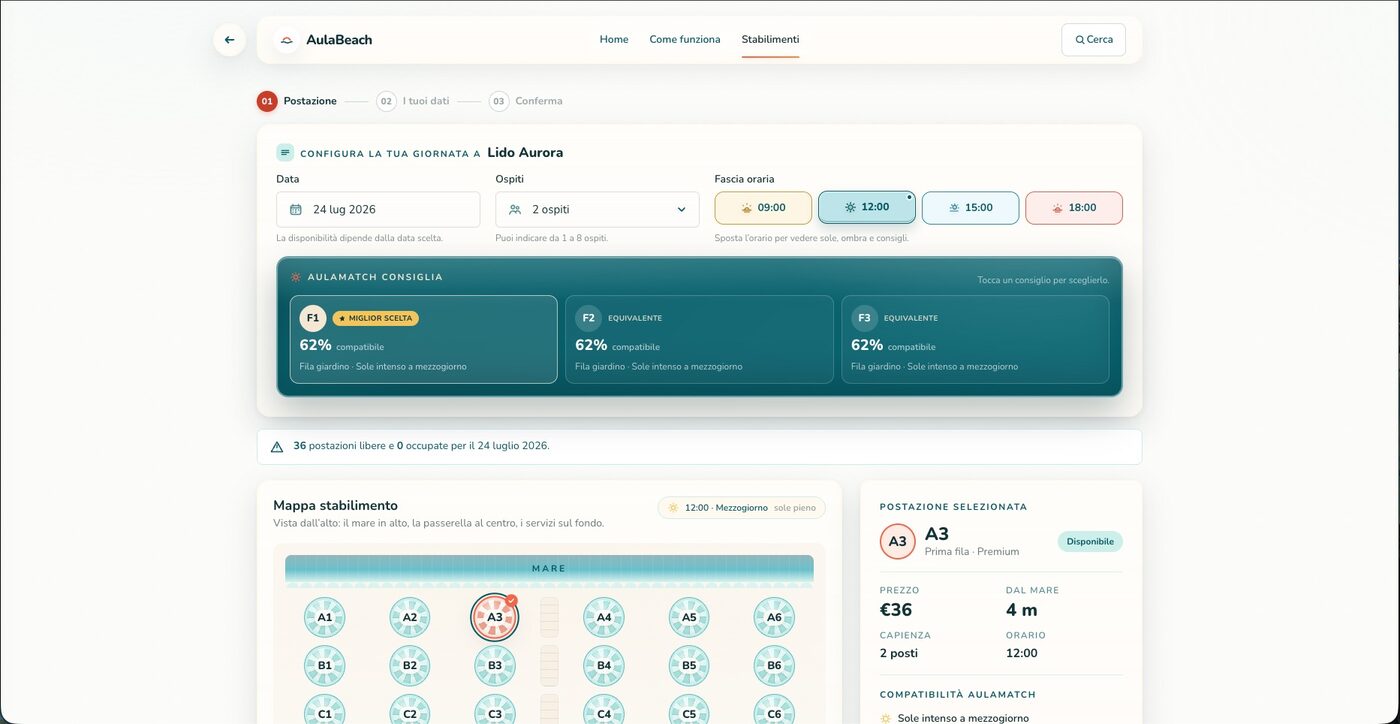

Three steps and a code.

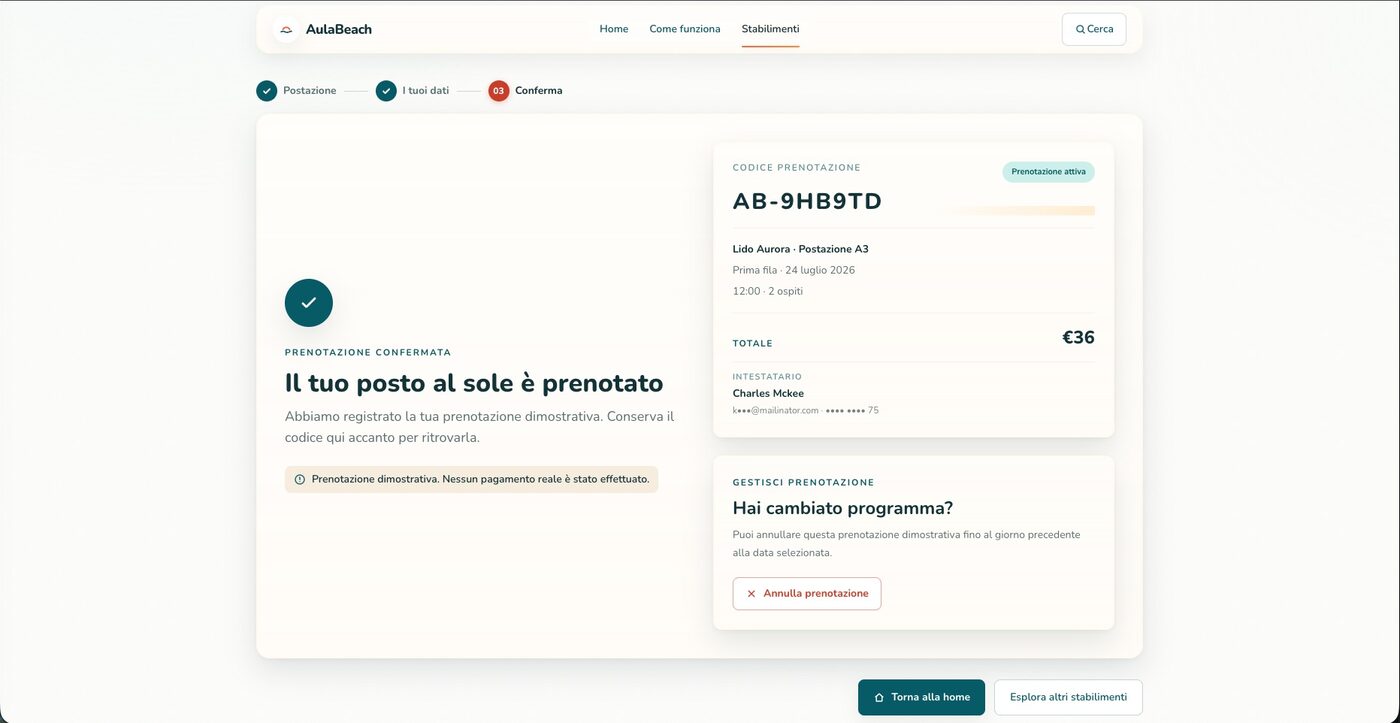

The booking never leaves the same frame. Place, details, confirmation — and cancellation stays available until the day before. No real payment is ever taken, and the product says so on every screen.

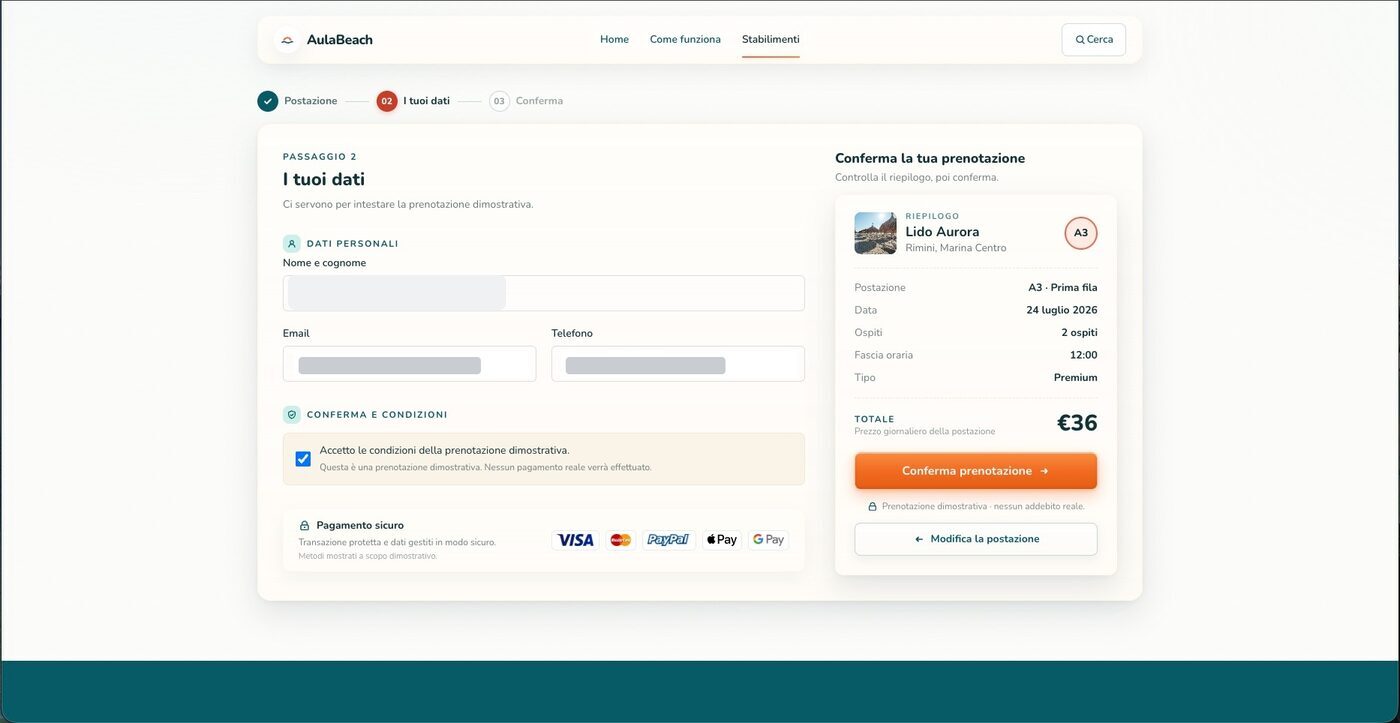

Personal-looking demo data in the second capture is masked.
05 · Responsive
The plan stays a plan.

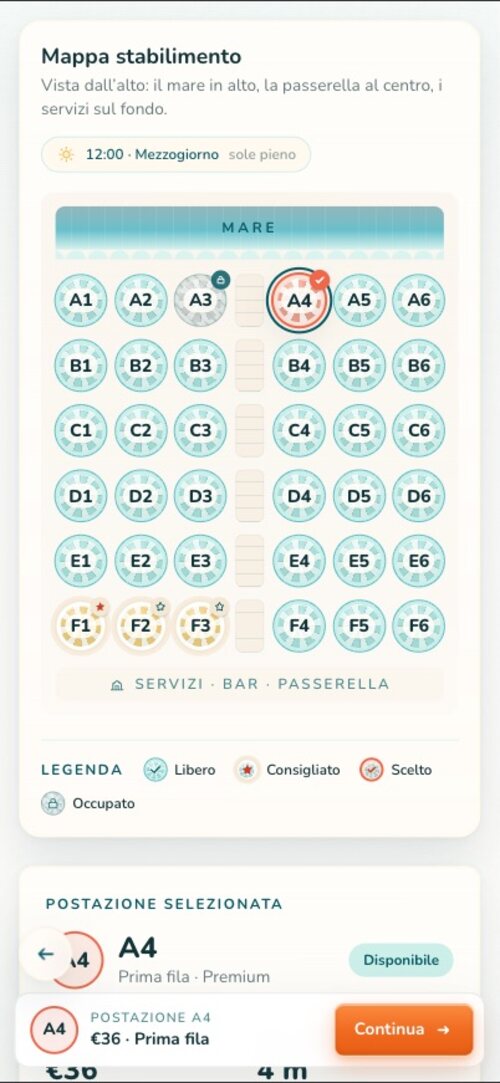

The 6×6 grid is not collapsed into a list on a phone. It keeps its geometry and gains a persistent bar carrying the selected place, so the map never has to give up the one thing it is for.

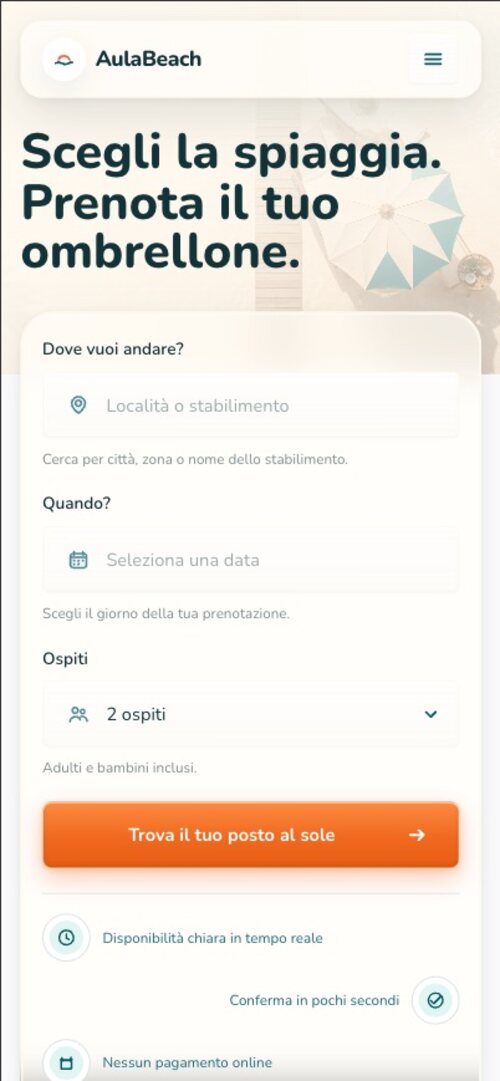

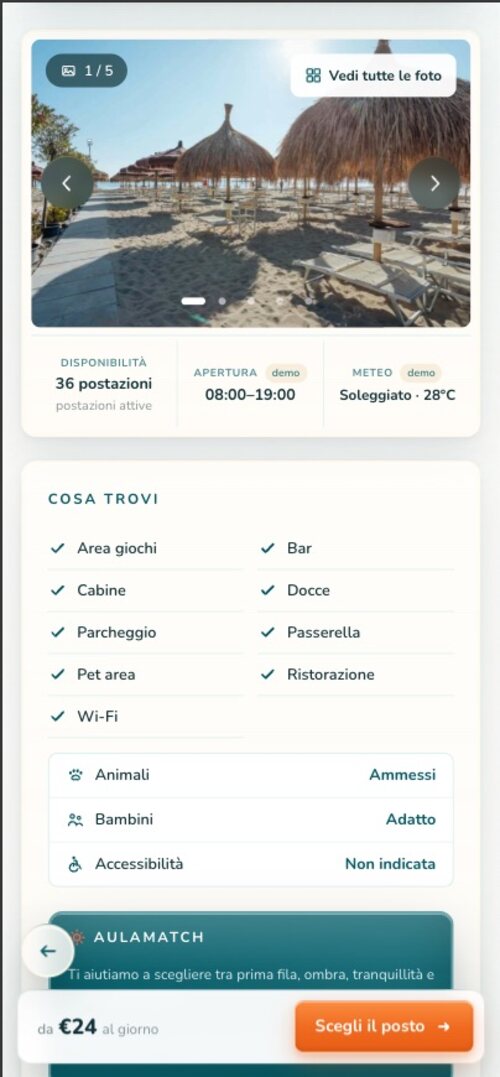

Product captureCaptured at 402 × 869. Three steps of the same journey.
06 · What holds it up
A simulation, declared.
Availability, scoring and reservation stay separate, so the preferences and time used by AulaMatch never decide whether a place is actually available. One request crosses five responsibilities, in this order.
01 · Entry
Laravel
Routing, validation and the demonstration guard on every write.
02 · State
Livewire
Holds date, guests, time slot and the selected place without a page reload.
03 · Advice
AulaMatchService
Scores every free place with deterministic, explainable rules.
04 · Truth
Availability
Date and station status. The only concern allowed to say no.
05 · Outcome
Reservation
Issues the code and keeps eligible cancellation open until the day before.
- Repository
- Private. Code available on request.
- What is real
- Every capture comes from the running application; only personal-looking demo fields are masked. Distances, prices, states and scoring rules match the source.
- What is reconstructed
- The editorial plan, moving sun, tilt and the fixed 11-position occupancy snapshot are built for this case study and do not write product data.
